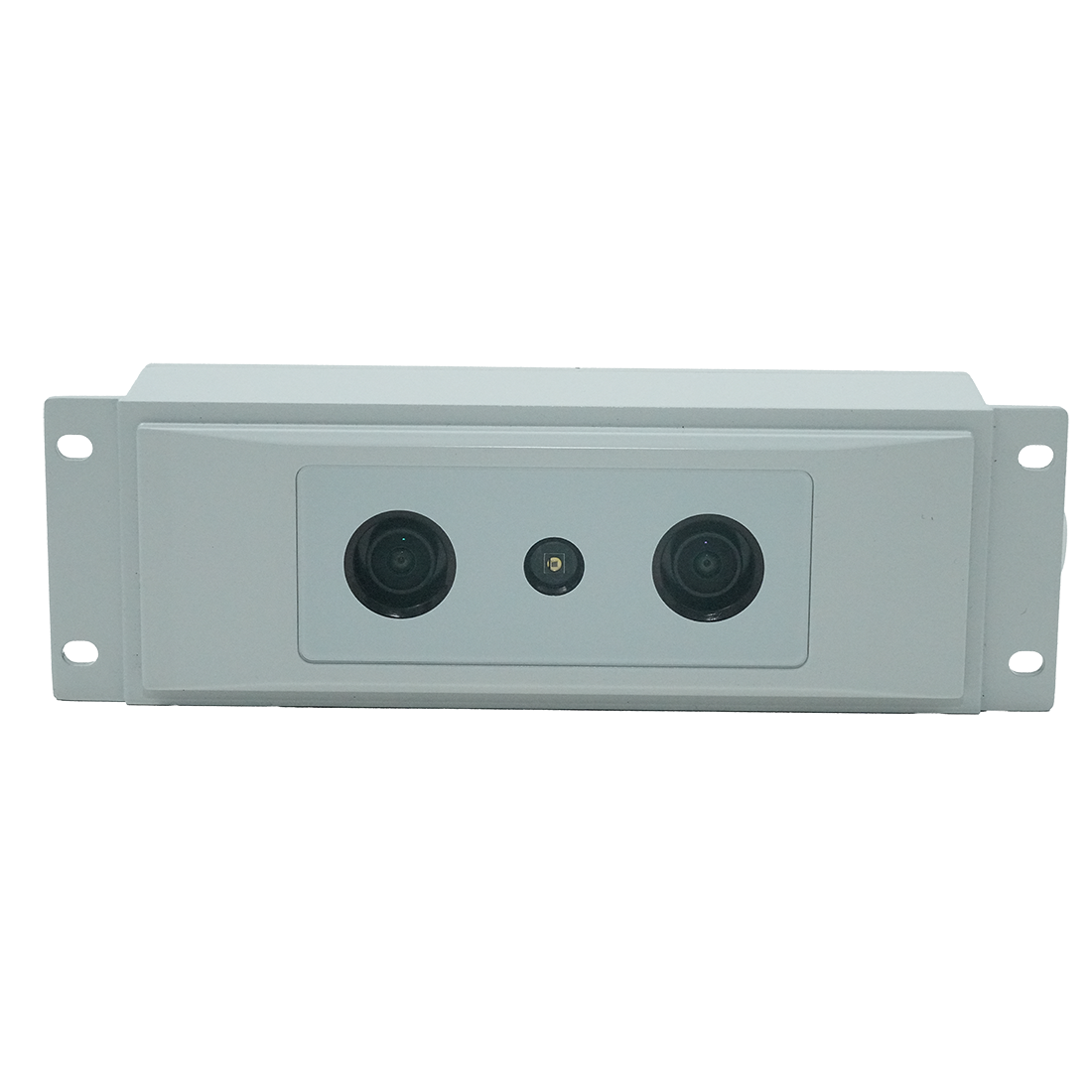

Passenger Counting Unit
Passenger Counter acquires depth information through binocular stereo sensor technology and recognizes head and shoulder features in complex scenes based on the head and shoulder feature algorithm, thereby achieving accurate statistics of passenger entry and exit.
Data Download
Product Features
-
High accuracy rate
Relying on the advanced Binocular stereo sensor technology, it can instantly capture and simultaneously track the dynamics of multiple passengers. According to the VDV457 standard, the accuracy rate is ≥95%.
-
High real - time performance
By using high - performance chips, it can calculate and feedback the changes in the number of people in real time.
Parameter specifications
FOV：
Horizontal 140°，Vertical 120°
Operating Conditions：
-20 °C to 55 °C, humidity less than 80% or less (non-condensing)
Accuracy rate：
≥95%（VDV 457）
Power Supply：
PoE (802.3af)
Protection Level：
IP66
Power：
10W Max
