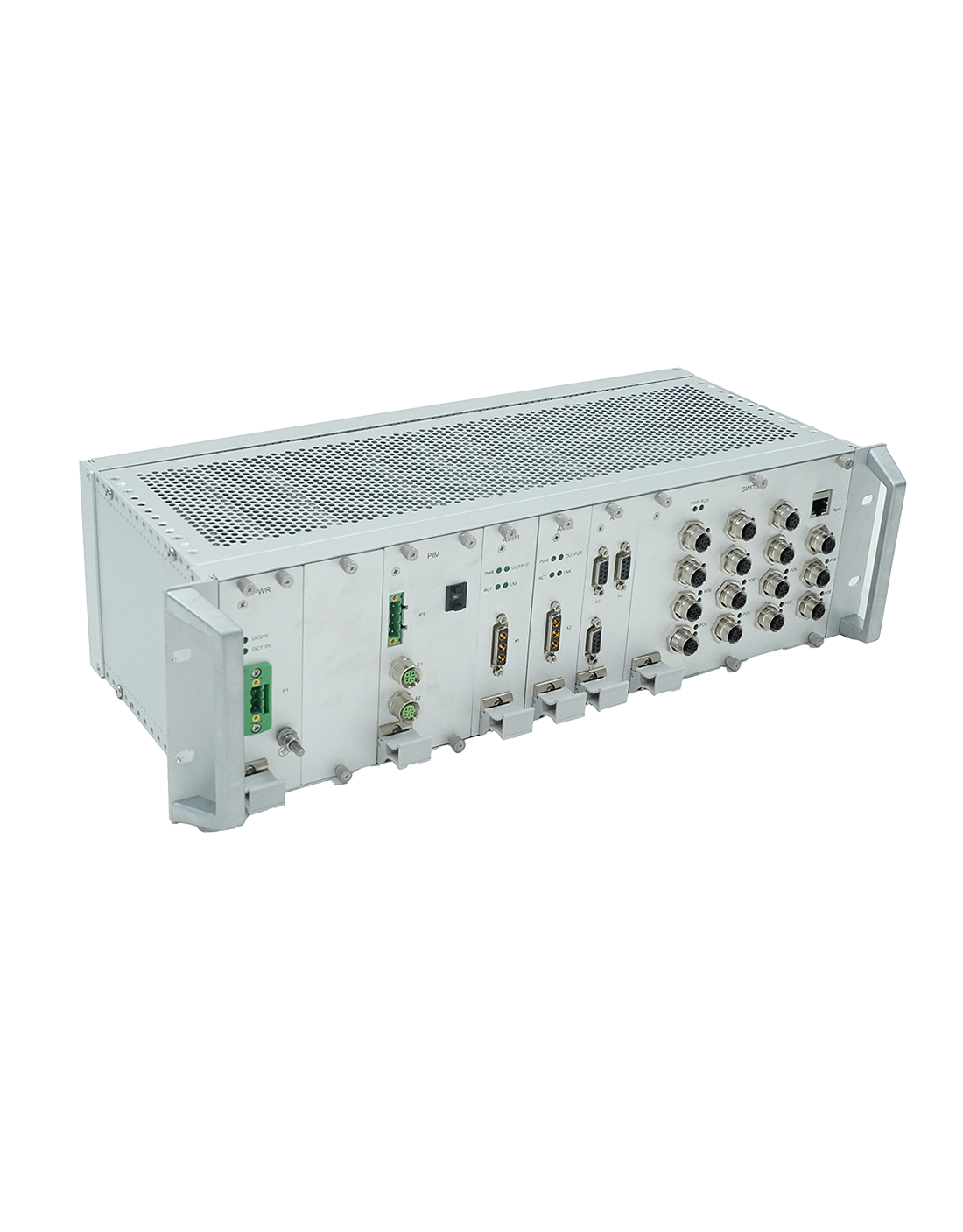

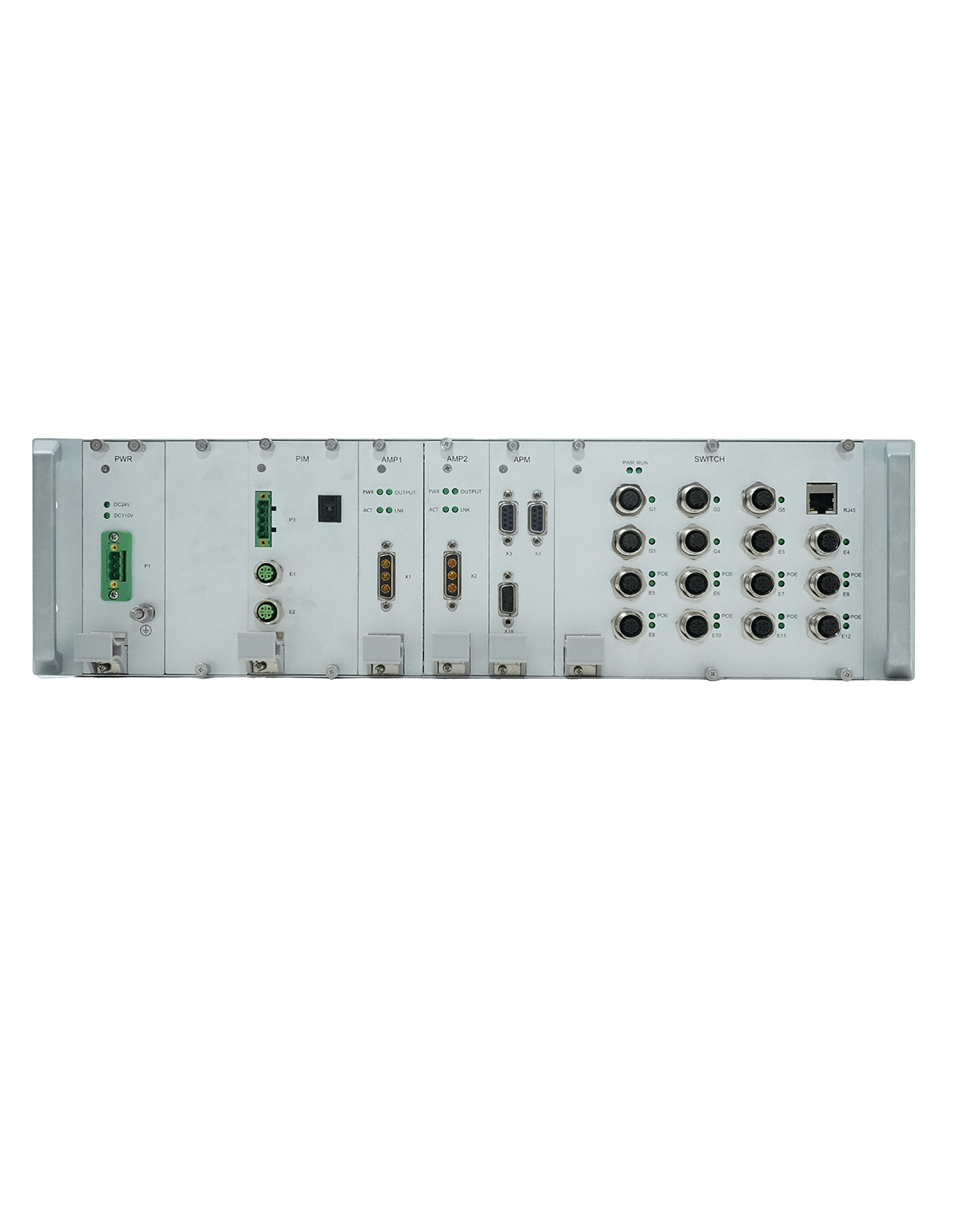

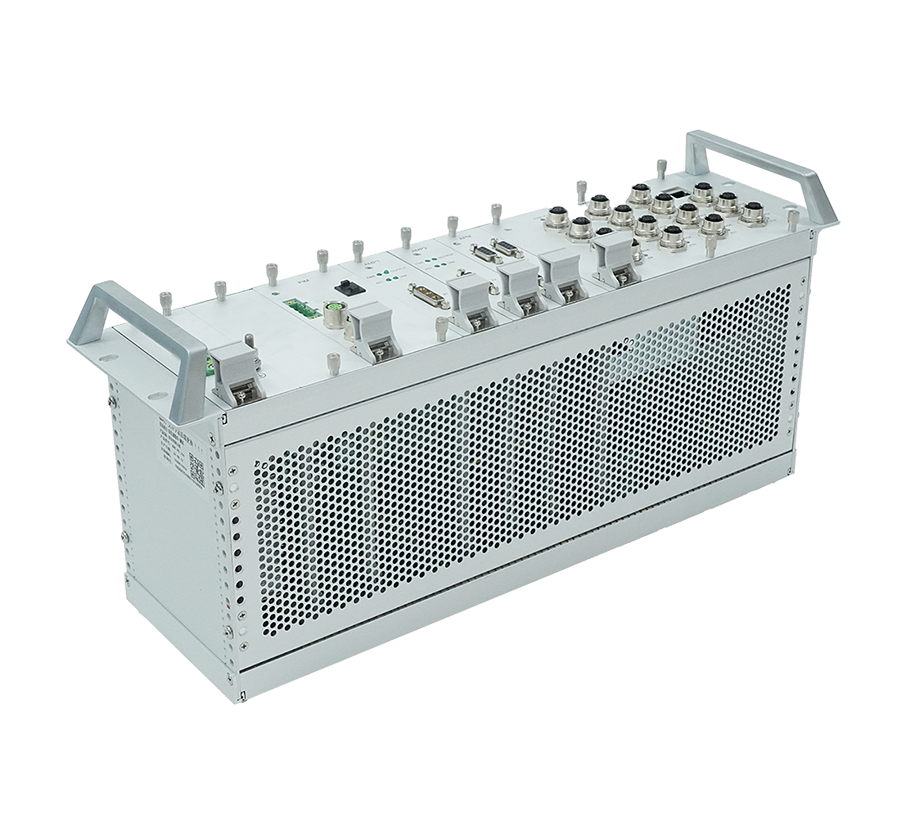

Saloon Control Unit
Saloon control unit is the car-level controller for each carriage in the PA / PIS system. It is the core device for controlling the broadcasting and information display. It accomplishes the networking between the train-level network and the car-level network of the system, as well as functions such as broadcasting control, volume control, and information display within its own carriage.
Data Download
Product Features
-
Good Maintainability
It adopts a modular design, which facilitates the installation, debugging, maintenance, and replacement of equipment. It is convenient to quickly locate and troubleshoot faults, reducing maintenance costs and time.
-
High Stability
It adopts an embedded chip solution based on Linux and undergoes special design according to the usage environment, which enables it to perfectly adapt to the complex and harsh environment of the train.
Parameter specifications
Audio Sampling Rate：
44.1kHz/16bit，monophonic
SNR：
≥70dB
Frequency Response：
+1dB/-2dB（100Hz～12kHz）
Power Supply：
Options include DC110V, DC72V, DC24V
Harmonic Distortion：
≤1%（100Hz～12kHz）
Power：
100W Max
