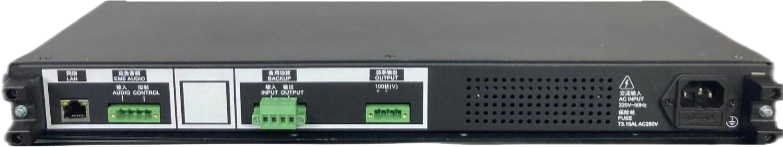

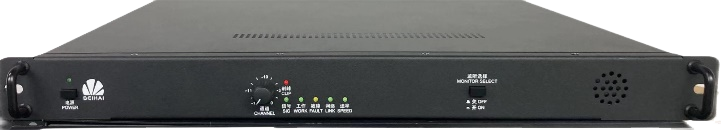

Digital Power Amplifier（Single Channel）
The single-channel digital power amplifier adopts the latest generation of SMPS (Switch Mode Power Supply) and CLASS-D amplification technology, achieving high efficiency in energy utilization. This device has excellent heat dissipation performance and remarkable stability, providing users with stable and reliable sound output. Its 1U size design not only saves space but also makes installation and maintenance convenient. The integration of status indicator lights and the speaker monitoring function provides users with an intuitive operating experience. The built-in independent digital power amplifier module, through the full same-frequency technology, further enhances the audio performance and sound quality, ensuring the purity and delicacy of the sound.
Data Download
Product Features
-
Highly Integrated SMPS+CLASS-D Technology
The equipment adopts the new generation of highly integrated SMPS+CLASS-D power amplifier module technology, which has higher working efficiency, superior heat dissipation performance and strong stability.
-
1U Size
1U size, with status light indicator and horn monitoring functions, including independent digital power amplifier module, using full frequency technology to optimize performance and sound quality, durable, beautiful.
-
Multi-field application
With automatic delay startup, emergency broadcast function, real-time monitoring, automatic machine down and other functions.
Parameter Specifications
Power Amplifier Type：
Class D
Output :
100V,500W（1kHz,Distortion 0.63,Load 20Ω）
Distortion Ratio：
1KHz≤0.5%
Signal to Noise Ratio：
≥100dB
Input：
0dB
Frequency Response：
40Hz～16KHz，≤±1dB
