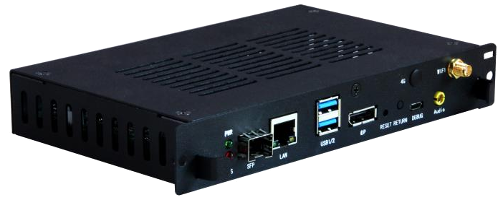

ARM Series OPS Playback Controller
Standard OPS interface; Support gigabit SFP optical port, RJ45 network port.
Data Download
Product Features
-
RK3399 CPU
6 cores, main frequency 1.8GHz.
-
Capacity Optional
4GB DDR4; Solid-state drive (SSD); Capacity optional.
-
Mali-T860 Graphics Card
support H.265, H.264 decoding, support 4K ultra HD video output.
-
Multi-field application
Support Android and Linux systems; Debain.
Parameter specifications
Internal Memory：
4GB DDR4
USB：
2x USB3.0，2x USB2.0
Hard Disk：
128GB SSD
Serial Port：
2x COM（RS232,RS485）
Network：
2 Gigabit adaptive Ethernet cards (1 SFP optical port, 1 RJ45 electrical port).
Display Interface：
One 1x HDMI on the front panel and one 1x HDMI on the back (via OPS)
Other Products
-

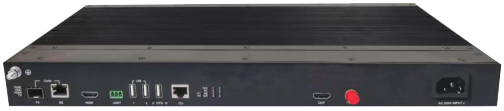

ARM Series OPS Broadcast Controller
Learn More
-

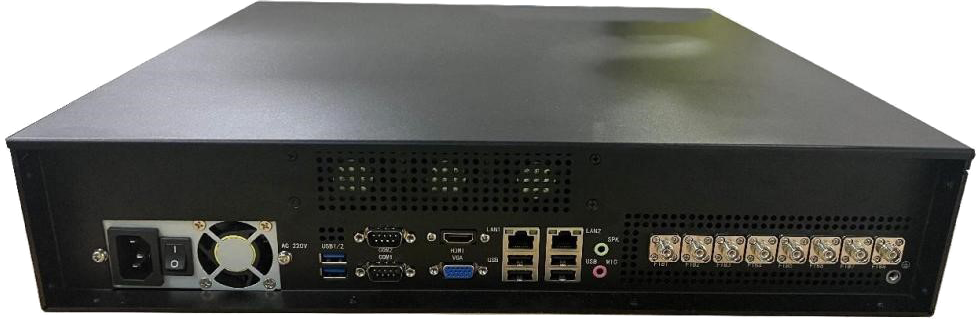

X86 Series LCD Player Controller
