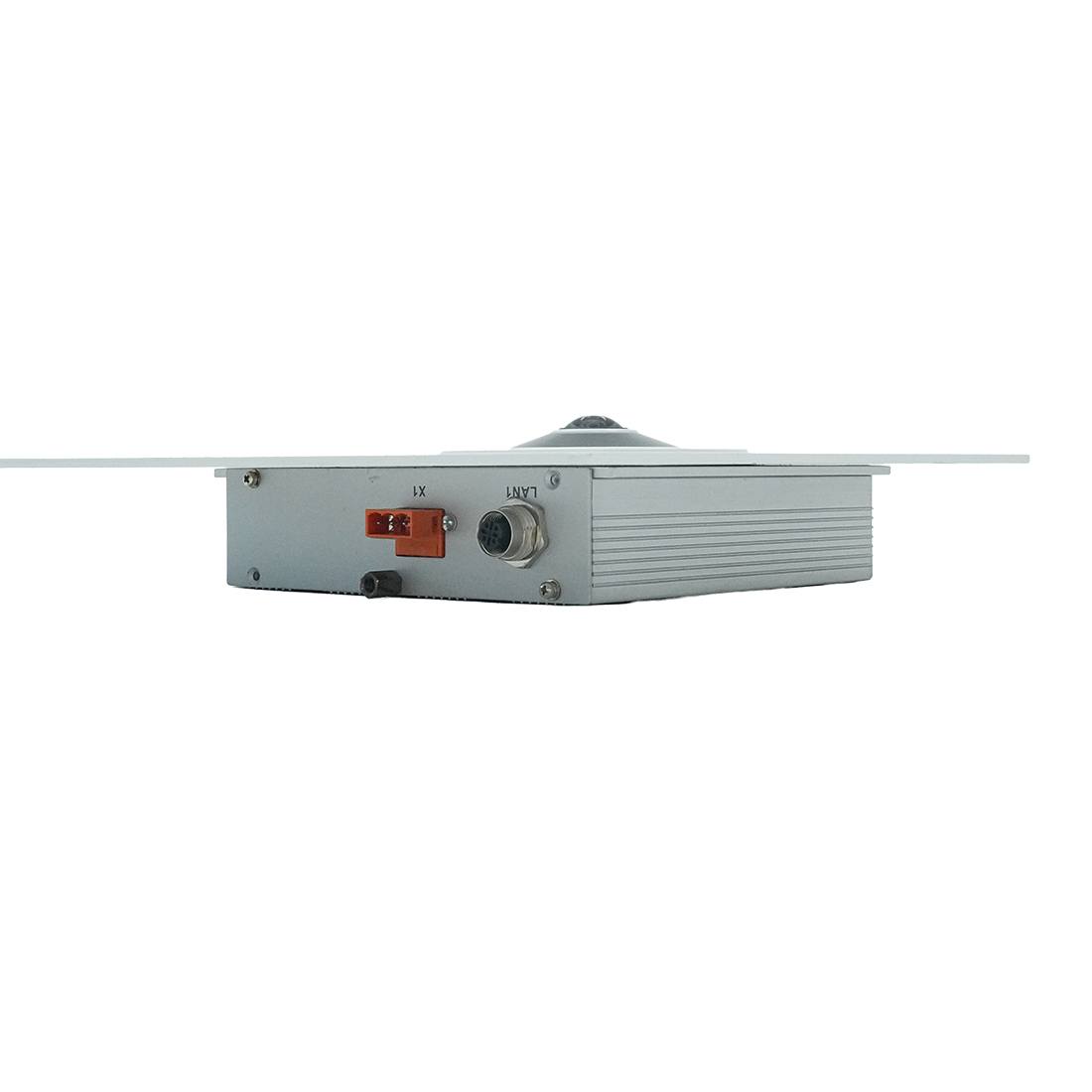

6MP Fisheye Network Camera（Square)

6MP Fisheye Network Camera（Square)

01
The 360° panoramic camera with high - definition image - capturing capability adopts an ultra - wide - angle lens. It can shoot 360° panoramic views, achieving blind - spot - free monitoring. It supports multiple output modes and bit rate settings, adapting to different requirements for image quality and fluency in various scenarios. The device is equipped with high - efficiency infrared lights for 360° omnidirectional light compensation. The irradiation distance can reach up to 5 meters, enabling real - time day and night monitoring. It is widely used in the CCTV monitoring of the rail transit industry.
Data Download
  • 6MP Fisheye Network Camera（Square)
  • 6MP Fisheye Network Camera（Square)
  • 6MP Fisheye Network Camera（Square)
02
Product Features

  • Wide Range of Application Scenarios

    It supports multiple image output methods, audio/video compression algorithms, multi - level video quality configurations, and encoding complexity settings, adapting to different usage scenarios.

  • Compatible with Multiple Protocols

    It is compatible with multiple protocols, enabling easy interconnection and interoperability of devices to meet the needs of different system integrations.

03
Parameter specifications
Sensor： 1/1.8” Progressive Scan CMOS
Max. Resolution： 3072×2048
Focal Length： 1.27mm, F2.8
Power Supply： DC 12V（9.6~36V）, PoE (802.3af)
Operating Conditions： -30 °C to 60 °C, humidity less than 95% or less (non-condensing)
Power： 8W Max
04
Other Products
05
Relevant Cases
  • Line 1 in Mexico
    As an important artery of urban transportation in Mexico City, Line 1 bears a large passenger flow every day. Beihai Communication has meticulously developed a Passenger Information System (PIS) for 29 newly built trains and 10 retrofitted trains on Line 1 of Mexico City. This system consists of three major subsystems: the Train Public Address (PA) system, the Passenger Information Display System (PIDS), and the Closed-Circuit Television (CCTV) system.
    MORE
    Line 1 in Mexico
  • Hangzhou Metro Line 19
    The Hangzhou Metro Line 19 (Hangzhou Airport Line) was put into operation on September 22, 2022. Beihai Communication provided advanced passenger information (PIS) systems for all 45 trains, covering three subsystems: train broadcasting (PA), passenger information display (PIDS), and video surveillance (CCTV).
    MORE
    Hangzhou Metro Line 19
